- Low installation depth means a short installation time and low installation costs
- Integrated filter technology due to tank filter packages

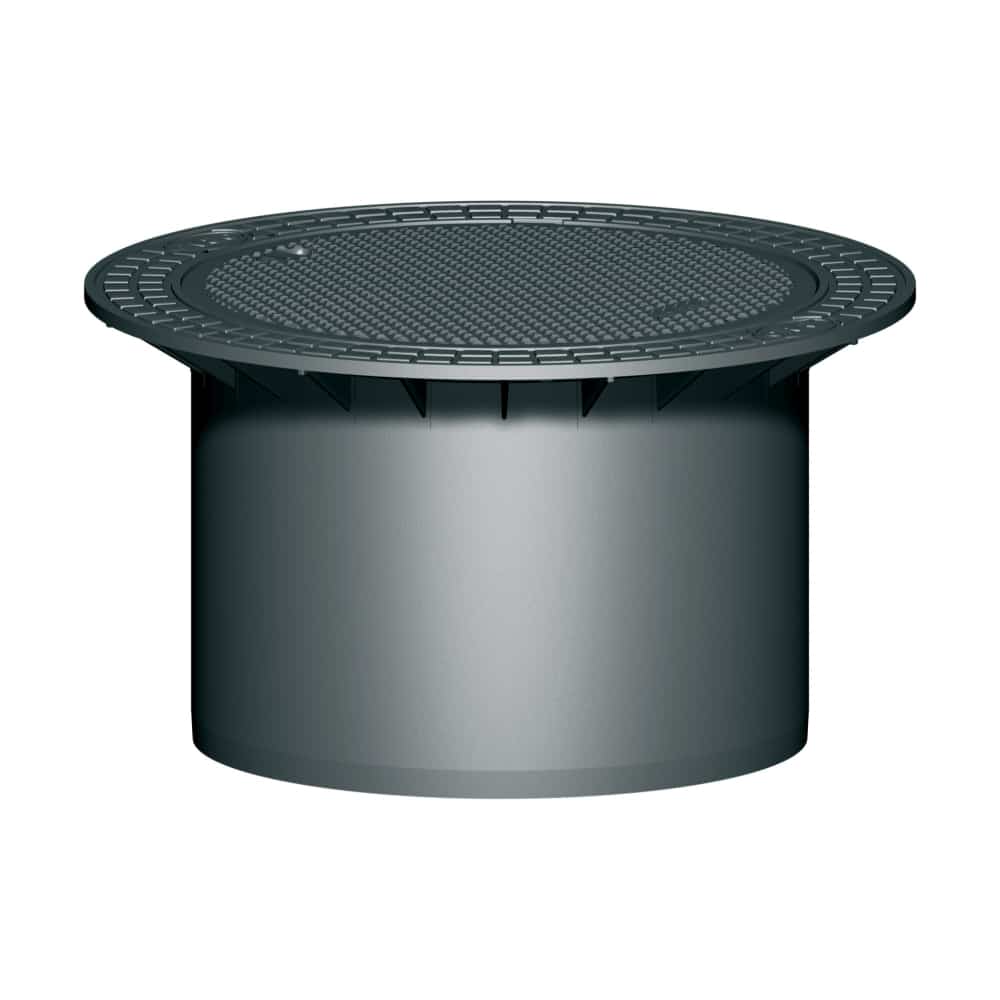

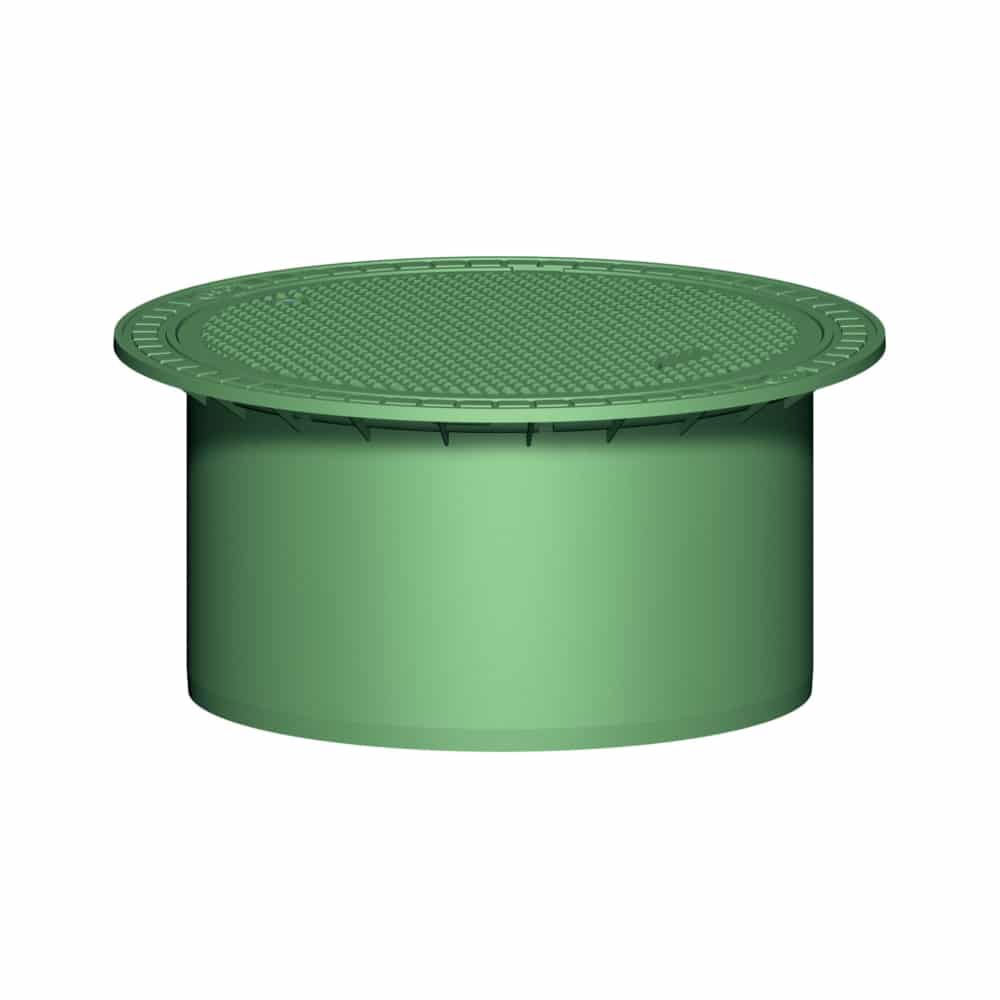

- Suitable for vehicle loading (in combination with a Telescopic dome shaft and cast iron lid)
- Groundwater-stable up to the shoulder of the tank thanks extremely stable design
- Doesn’t require concrete to anchor
- Easy transport due to low weight
- Secure investment thanks to 15-year warranty
- The Platin rainwater tank can be extended in volume through interconnection

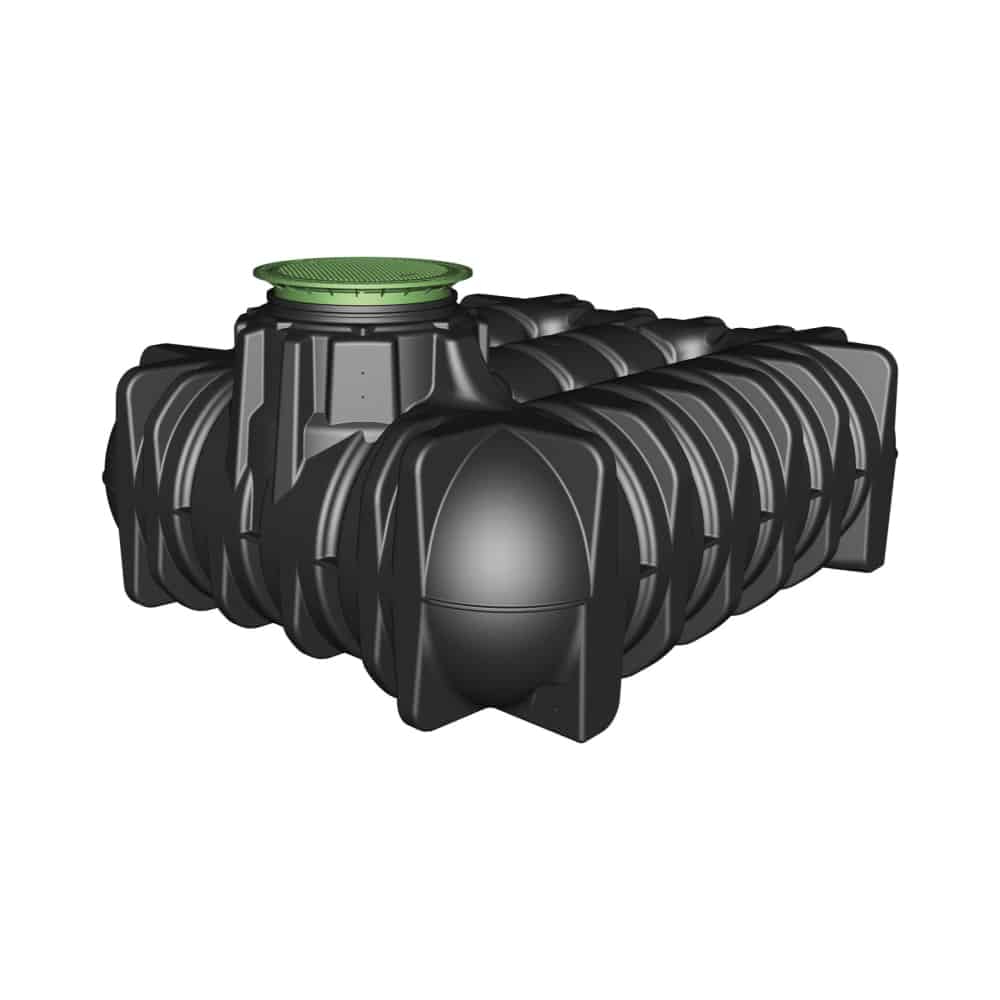

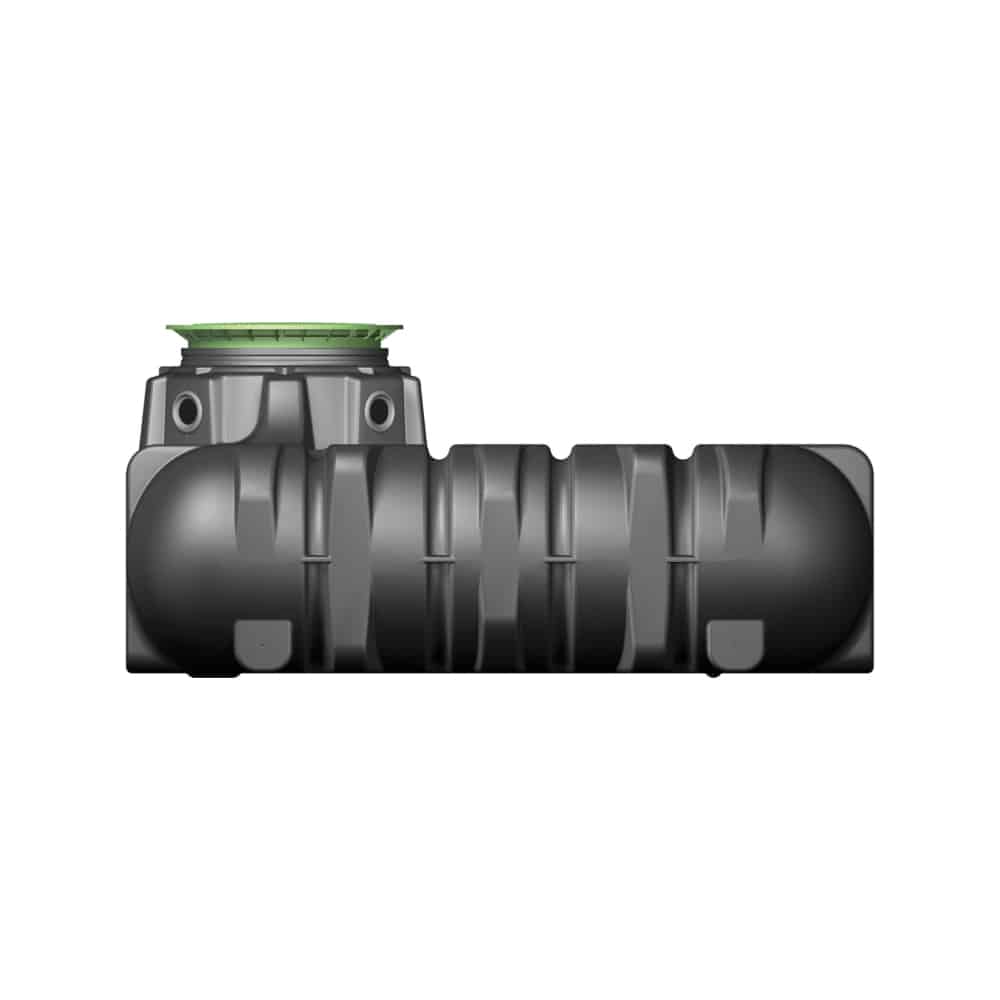

Platin Rainwater Tank

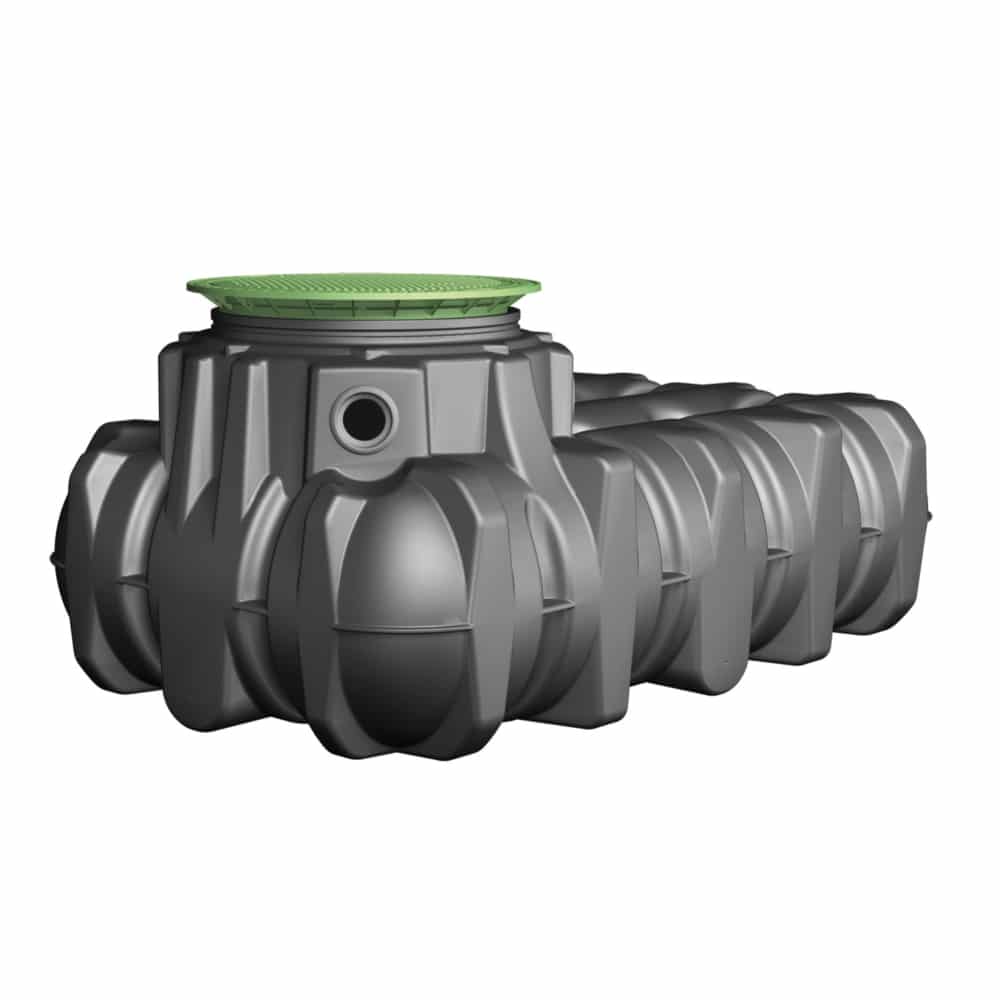

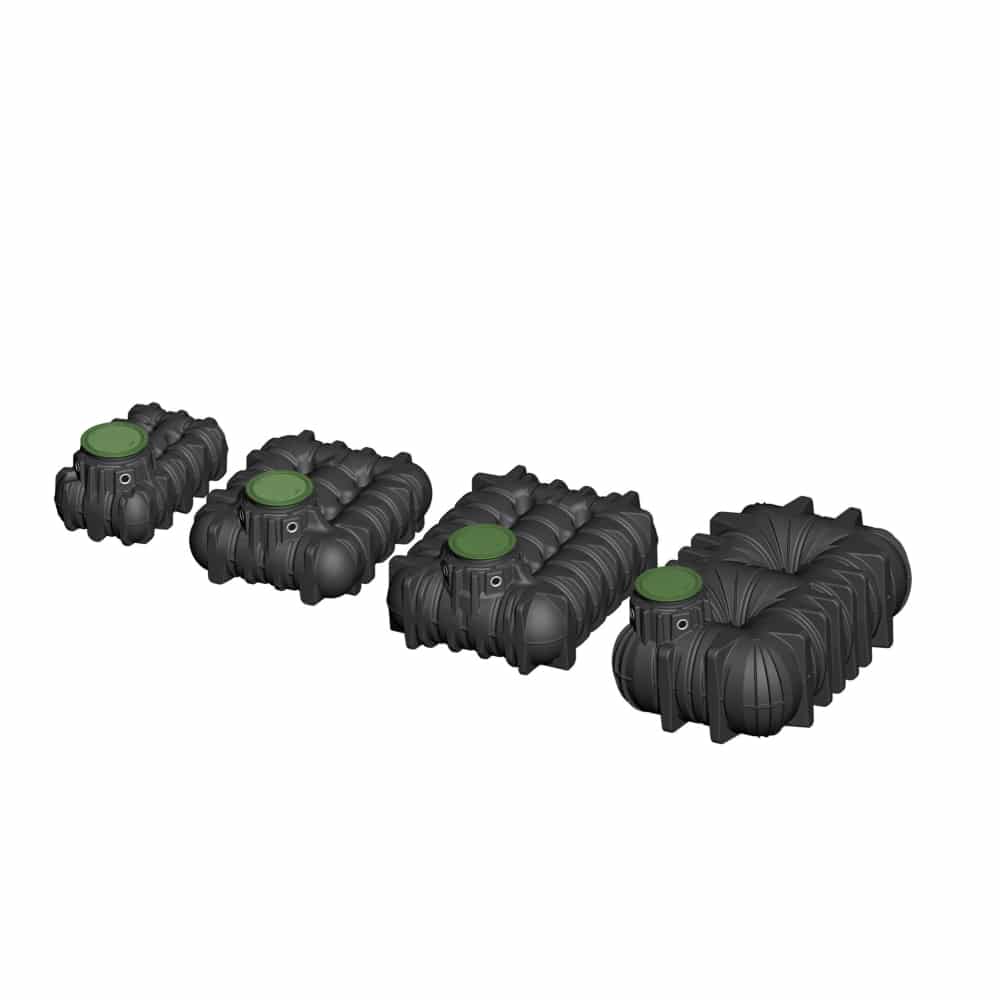

The Platin flat rainwater tank was specially developed for rainwater harvesting where a shallow installation is required. It is available for volumes of 1500 to 5000 litres with larger sizes available in the Platin XL & XXL range.
Technical Details
Earth covering with loading capacity [mm]
700-1000
max. axle load [t]
2.2
max. vehicle weight [t]
3.5
max. vehicle weight with reinforced concrete slab [t]
60
Earth covering with groundwater installation [mm]
700-1200
max. earth covering [mm] (without groundwater, vehicle loading)
1200
