- Optimal tank geometry and statics due to CAD product development – equals highest stability
- Unique fitting accuracy of the components
- Consistent quality due to constant production monitoring
- Vehicle or lorry-bearing (combined with Telescopic dome shaft with cast iron lid class B or D)
- Groundwater stable up to the middle of the tank thanks to extremely stable construction
- Secure investment thanks to the market leading 15-year warranty!
- Can be expanded as required

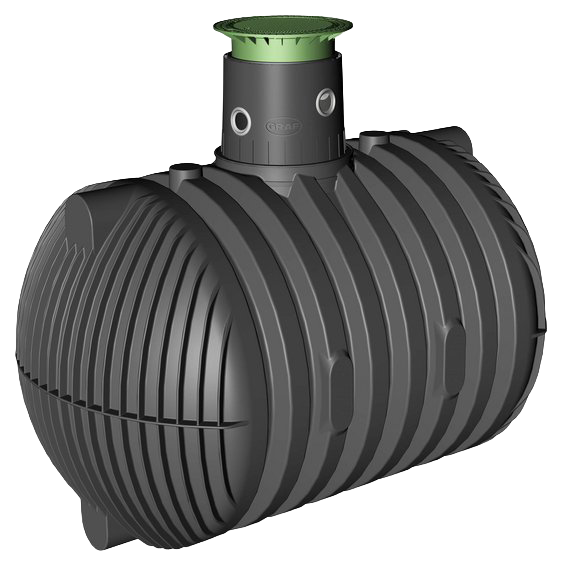

Carat XL Underground Rainwater Tank
Specifically developed for rainwater harvesting, available in sizes 8500 and 10000 litres various vehicle load bearing (combined with Telescopic dome shaft with cast iron lid).
Technical Details
Earth covering with loading capacity [mm]
800-2000
max. axle load [t]
8
max. vehicle weight [t]
12
max. vehicle weight with reinforced concrete slab [t]
60
Earth covering with groundwater installation [mm]
800 - 1800
max. earth covering [mm] (without groundwater, vehicle loading)
2000
